13000 lb+, Engineering Tsheb, HWE Series, Hydraulic Winch
Tsim los nrog EN tus qauv, HWE Series muab kev ntseeg siab, muaj zog ua haujlwm. Nthuav-hom hydraulic nres muab hnyav braking torque, lub neej ntev thiab ruaj khov kis tau tus mob. Muaj peev xwm txog li 30 tons ua rau txoj kab no rau kev siv dav hauv engineering tsheb, wrecker thiab rov qab los
Kev piav qhia

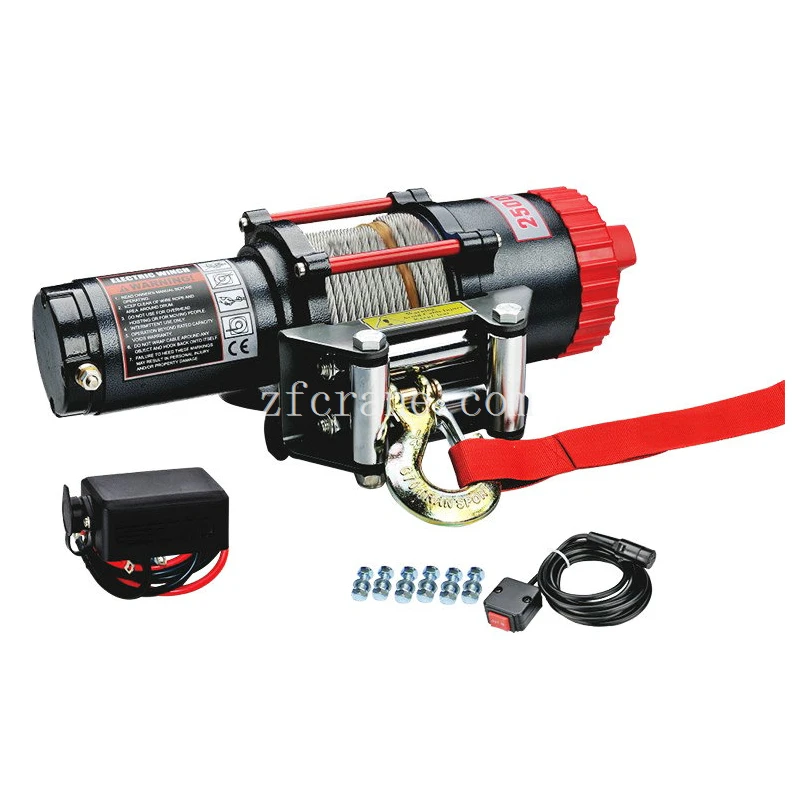

Engineered rau cov neeg nyiam off-road, peb Off-road Winch muab lub zog thiab kev ntseeg siab uas xav tau los daws txoj kev nyuaj tshaj plaws. Qhov winch no yog qhov tseem ceeb rau kev ua haujlwm rov qab thiab ua kom koj tuaj yeem rov qab mus rau txoj kev thaum koj taug txuj kev nyuaj tig tsis raug.
Nta
• Kev tsim kho hnyav:Ua kom tiv taus qhov hnyav off-txoj kev ib puag ncig.
•High Load Capacity:Muaj peev xwm tuav qhov hnyav hnyav rau kev ua haujlwm rov qab.
•Weatherproof Tsim:Sealed tiv thaiv dej thiab hmoov av rau kev txhim khu kev qha.
•Quick Install:Cov txheej txheem teeb tsa yooj yim nrog txhua yam tsim nyog suav nrog.
Specifications
|
Rated kab rub |
33000 lbs (15000kgs) |
|
Lub cev hloov chaw: |
250ml / r |
|
Roj ntws: |
10-120L/min |
|
Siab: |
20Mрa |
|
Nres: |
Hom ntub dej hydraulic nres |
|
Gearrain: |
2-stage planetary alloy iav |
|
Iav txo qis piv: |
40.6:1 |
|
Waterproof: |
IP67 |
|
Cable (Dia × L): |
Φ7/8"x131(Φ22mmx40m) |
|
Nruas loj (DiaxL): |
Φ8.27 "x 13.39" (Φ210mm × 340mm) |
|
Mounting bolt qauv: |
20.55 "x7.09" x 11.02" (522mm × 180mm × 280mm) 8-M20 |
|
Net nyhav: |
300 kg |
Qhov ntev
|
|
PERFORMANCE SPECS (thawj txheej) |
|||
|
Kab rub |
Siab |
Ntws |
Kab Ceev |
Rub los ntawm txheej |
|
Lbs (kgs) |
Mpa (Psi) |
G/min. (L / min.) |
Ft/min. (M / min.) |
txheej / Lbs.(kgs) |
|
0 |
4(580.2) |
5.3(20) |
4.3(1.3) |
1/33000 (15000) |
|
21000 (9526) |
10(1450.4) |
15.9(60) |
13.8(4.2) |
2/27700 (12565) |
|
23900 (10841) |
12(1740.5) |
21.1(80) |
18(5.5) |
3/23900 (10841) |
|
27700 (12565) |
15(2175.6) |
26.4(100) |
22.6(6.9) |
4/21000 (9526) |
|
33000 (15000) |
18(2610.7) |
33(125) |
27.9(8.5) |
|
